Brack Kit [Luxe]
Structural support kit for floating shower seats, suspended shelving/furniture, and more. It's modular design can be combined to accommodate structures with longer spans. Kit contains two brackets and two sets of screws.
*Additional 2 3/4" screws required if combining kits
🇨🇦100% Manufactured in Canada
- Time saving installation for floating bench/shelf
- Highest rated capacity vs. competitors (up to 350lbs per Brack-14)
- Modular application
- Combine kits as necessary [recommend 1 kit per 16'' span - will vary by project]
- Additional 2 3/4" inch screws are required if combining kits. This is not included with the purchase of this product and must be sourced outside of Fittes
- Material - galvanized sheet metal with a long lasting powder coating (8 gauge)
- Recommended span between brackets is 16" on centre. Depending on weight of finishing material and application, span can vary.
- Each bracket is rated to hold 350 lbs.
- Studs must be a minimum of 2"x4"
- Install is best done by a Pro.
Detailed Dimensions
Install Guide
Install Video
At what point are these brackets installed in the build process?
Brackets must be mounted at the rough-in stage. You must have access to the studs inside the framed wall to properly mount.
What is this used for?

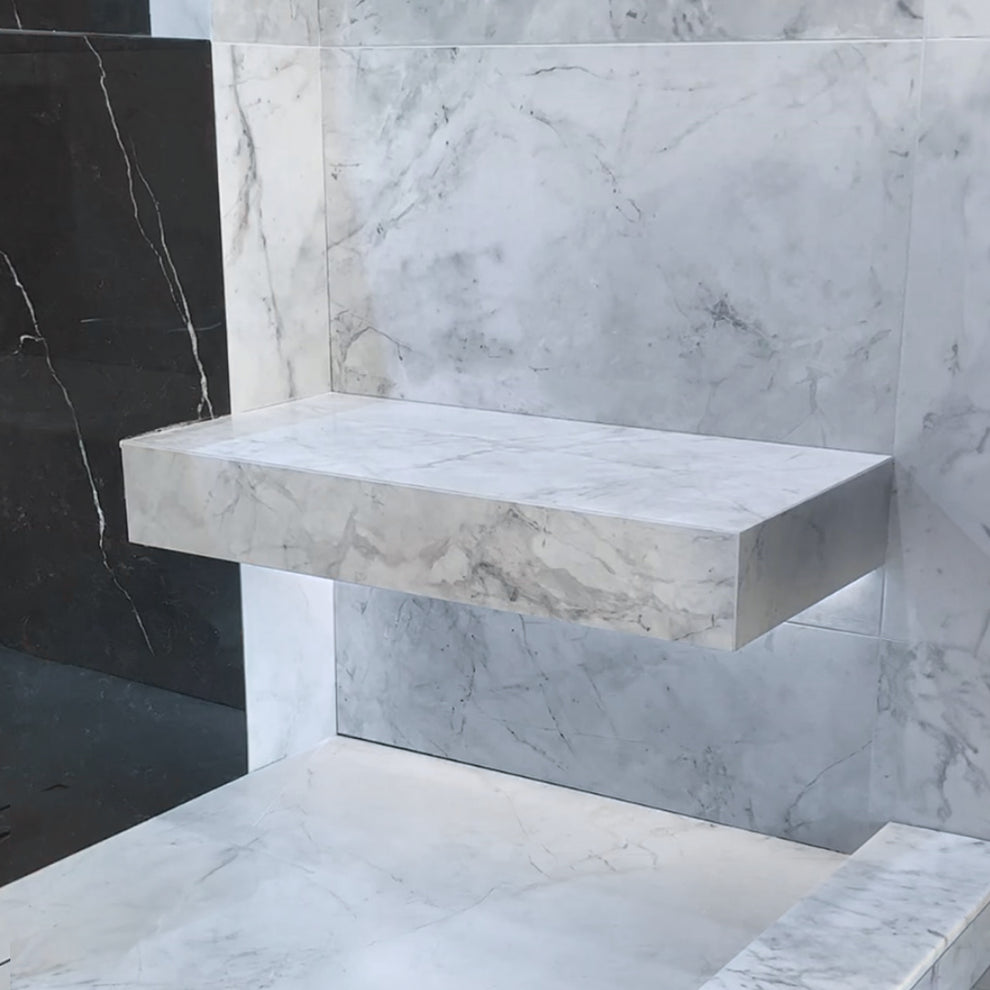

The Brack Kit [Luxe] is a structural support for any application where there is an engineered suspended structure. (ie. floating shower seat, shelves, vanity, etc.)
Can I use foam board in between the brackets?
No - foam board is not structurally sound. You must use a structurally sound material (ie. 3/4" plywood, aluminum honeycomb, solid wood, etc.)
For shower application, can I tile directly on top of the engineered seat?
No - you absolutely must waterproof prior to tiling.
Can I fasten the brackets on a 2x2 stud?
No - a minimum 2x4 stud in required. 2x6, 2x8, studs are also compatible.
Can I fasten the brackets to metal stud?
No - wood studs only.
